APPLICATION
Designed for use on insulated high temperature systems
where heat losses are to be kept to a minimum and to protect insulation against damage.
MATERIALS
Steel. Also, other materials can also be provided on request.
APPROVALS
Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58 (Type 39) Federal Specification WW-H-171E & A-A-1192A (Type 40A & 40B)
FINISH AVAILABLE
Plain, Hot Dip Galvanized, Electro-Galvanized.

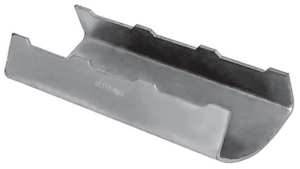

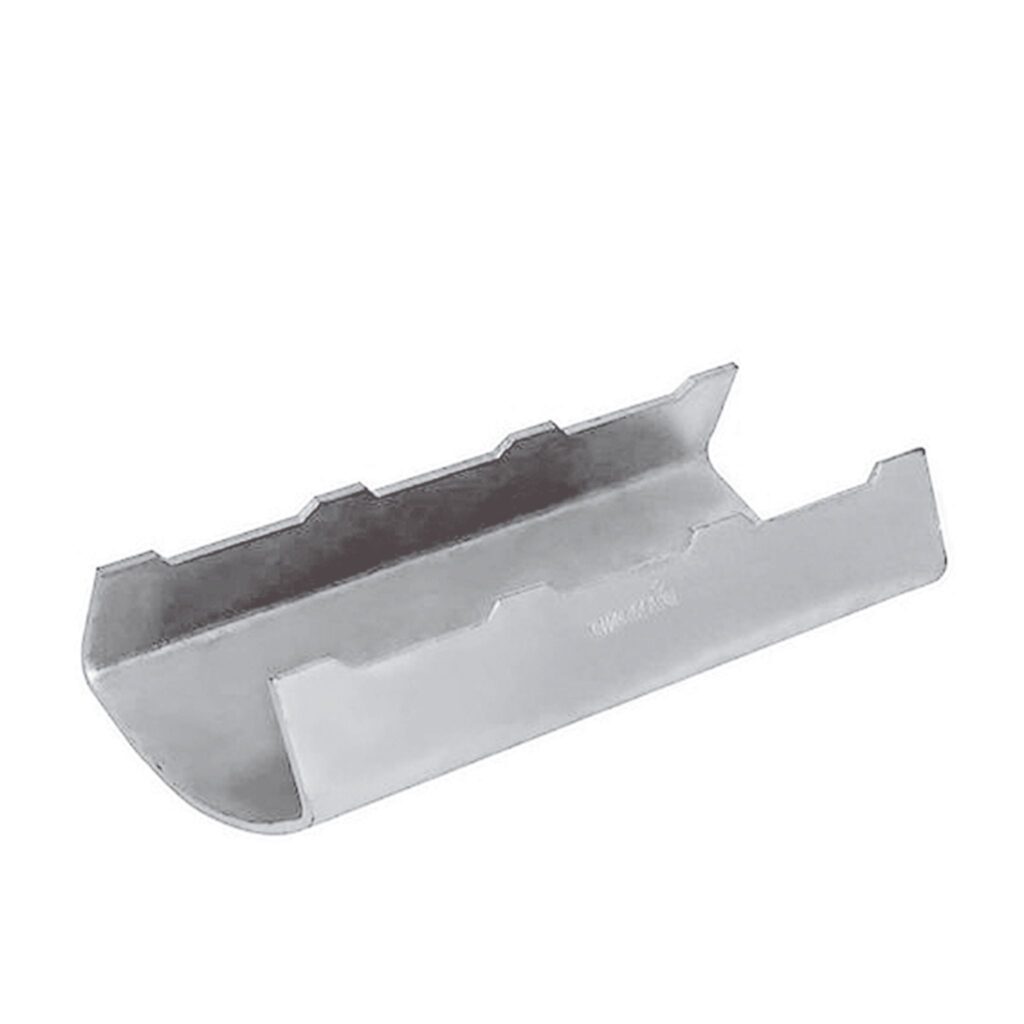

PIPE INSULATION SADDLE
Designed for use on insulated high temperature systems where
heat losses are to be kept to a minimum and to protect
insulation against damage
Steel. Also, other materials can also be provided on request.
Plain, Electro-Galvanized, Hot Dip Galvanized or epoxy coating
Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58 (Type 39)
Federal Specification WW-H-171E & A-A-1192A (Type 40A & 40B)
Tap to View Data Sheet
Access detailed project specifications and technical data here
